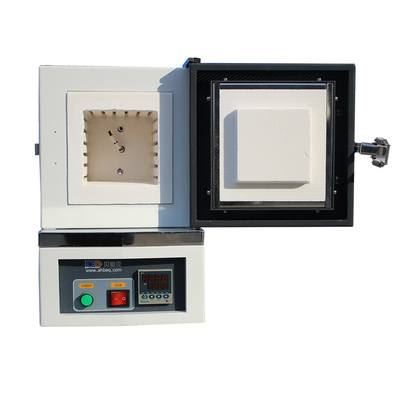

high temperature laboratory furnace
Open-up structure
Chamber size
Product Description:
1.The heating insulation material is vacuum adsorptive alumina firbre inorganic material which is environment-protective .
2.It is adopted PID automatic control and the accuracy of temperature is ±1ºC
3.Multi-heating insulation material make the furnace's volume small, power consumption is ligher( it is about a quarter
compared with the same kind products.
Parameter:
| Power | 1KW |
| Voltage | AC 208-240V Single Phase,50/60 Hz |
| Working temperature | Max. Temperature: 1100 °C(1 hour) Continuous working temperature: ≤1000 °C Suggested heating rate:5-20℃/min |
| Chamber size | Chamber size:250*300*250mm(L*W*H) Capacity:1 Liter |
| Temperature controller |
|
| Thermocouple | K-type |
| Temperature accuracy | ±1℃ |
| Heating element | Fe-Cr-Al Alloy doped by Mo |
| Standard accessories | High-temperature glove 1 pair,crucible tong 1pc,brick pad 1pair,power line1pc |
Optional accessories | crucible,removable furnace frame |
| Net weight | 15KG |
| Gross weight | 20KG |
| Dimension | 430*580*650mm |
